Terminal Blocks - Terminal block double deck angled 90° 0.14÷1.5mm2 5.08mm

Prod code: 14838

MKKDSN-3-5.08

Price:  2.76 €
VAT:  0.66 €
Final price with tax:  3.42 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer PHOENIX CONTACT
Connector type terminal block
Connector variant double deck
Spatial orientation angled 90°
Wire cross section 0.14...1.5mm2
Contacts pitch 5.08mm
Number of ways 6
Rated current 13.5A
Flammability rating UL94V-0
Colour green
Rated voltage 250V
Body material polyamide
Electrical mounting THT, screw terminal
Connectors features assembling possibility
Length 17.78mm
Height 19.1mm
Operating temperature 40...105°C
Depth 18.3mm
Type of pin configuration 2x3

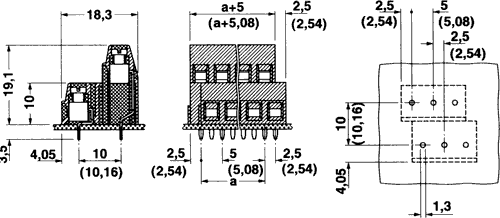

Dimensions  VIEW

Availability: With order
