Äéáêüðôçò - Switch push-button, Pos 2, SPDT, 3A/250VAC, ON-ON, Illumin none

Prod code: 40748

pa1.pdf PDF

PSM102A1

Price:  2.55 €
VAT:  0.61 €
Final price with tax:  3.16 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer SCI
Type of switch push-button
Number of positions 2
Contacts configuration SPDT
AC contacts rating @R(at resistive load) 3A / 250V AC
Switching method(the position in bracket indicates momentary position.) ON-ON
Illumination none
Leads for soldering
Operating temperature -25...70°C
Electrical life 6000 cycles
Max. contact resistance: 50mÙ
Button shape prominent, round
Mounting hole diameter Ø6.2mm
Actuator colour red
Panel thickness max. 4mm
Mounting on panel
Manufacturer series PA1
Stable positions number 2

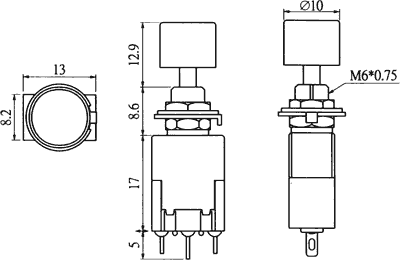

Dimensions  VIEW

Availability: On stock
