Connector - Socket, wire-board, male, 2mm, PIN 8, THT, 1A, tinned, -25÷85°C, 100V

Prod code: 31935
NXW-08 PDF

NXW-08
Price:  0.11 €
VAT:  0.03 €
Final price with tax:  0.13 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer NINIGI
Connector socket
Type of connector wire-board
Kind of connector male
Contacts pitch 2mm
Number of pins 8
Electrical mounting THT
Maximum current 1A
Contact plating tinned
Flammability rating UL94V-0
Operating temperature -25...85°C
Type of pin configuration 1x8
Max. operating voltage 100V
Max. contact resistance: 20mΩ
Spatial orientation straight
Enclosure material polyamide
Width 18.1mm

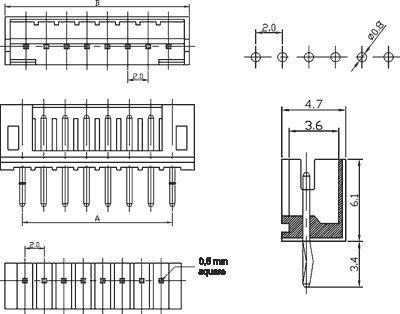

Dimensions  VIEW
Gross weight 0.343 g

Availability: On stock
