Pinhead - Socket pin strips female PIN 20 angled 2.54mm THT 2x10 3A

Prod code: 12061

ZL263-20DG

Price:  0.36 €
VAT:  0.09 €
Final price with tax:  0.44 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer NINIGI
Connector socket
Connector type pin strips
Connector type female
Number of pins 20
Spatial orientation angled 90°
Contacts pitch 2.54mm
Electrical mounting THT
Type of pin configuration 2x10
Contact plating gold plated
Leads dimensions len. 3.2mm
Maximum current 3A
Operating temperature 55...105°C

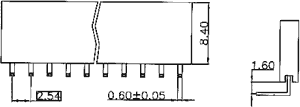

Dimensions  VIEW

Availability: On stock
