Thermostst - Sensor thermostat, Output conf NC, Topen 80°C, Tclos 60°C, 10A

Prod code: 19923

BT-H80V
Price:  1.35 €
VAT:  0.32 €
Final price with tax:  1.67 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer PROFFUSE
Sensor type thermostat
Output configuration NC
Opening temperature 80°C
Closing temperature 60°C
Operating current max. 10A
Max. operating voltage 250V AC
Connection connectors 6,3mm
Features vertical spade terminals

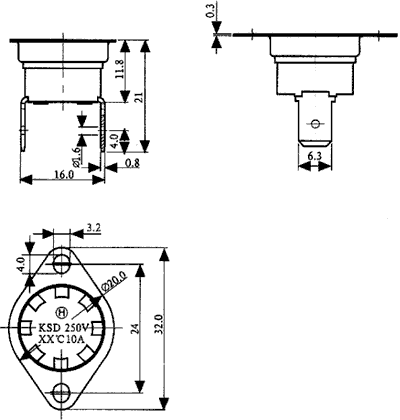

Dimensions  VIEW

Availability: With order
