Photoelectric sensor - Sensor photoelectric, through-beam (with slot), Slot width 5mm

Prod code: 37290
EE-SX1041 PDF

EE-SX1041
Price:  2.16 €
VAT:  0.52 €
Final price with tax:  2.67 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer OMRON OCB
Type of sensor photoelectric
Operation mode through-beam (with slot)
Slot width 5mm
Aperture width 500µm
Operation modes DARK-ON
Supply voltage 4V DC
Mounting THT
Operating temperature -25...95°C
Collector current 20mA

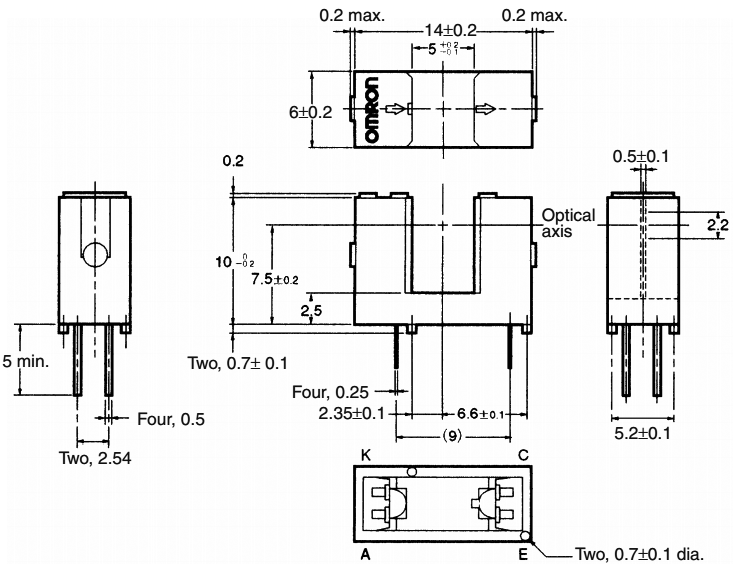

Dimensions  VIEW

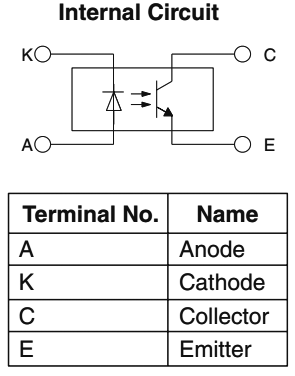

Schematic diagram  VIEW
Gross weight 0.545 g

Availability: On stock
