Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 24VDC, 5A/250VAC, 5A/30VDC

Prod code: 36924
FRM18A-24VDC PDF

FRM18A-24VDC
Price:  2.58 €
VAT:  0.62 €
Final price with tax:  3.20 €
Amount:
Warning Long delivery time
Specifications
Manufacturer FORWARD INDUSTRIAL CO.
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 24V DC
AC contacts rating @R 5A / 250V AC
DC contacts rating @R 5A / 30V DC
Contact current max. 5A
Switched voltage max. 110V DC,   max. 250V AC
Relay variant interface
Mounting PCB
Coil resistance 3.2kΩ
Body dimensions 20x12.5x5mm
Coil power consumption 180mW
Mechanical durability 20000000 cycles
Operating temperature -40...70°C
Weight 3g
Relay series FRM18
Contact resistance 50mΩ
Contact material silver alloy
Terminal pitch 5mm
Coil current 7.5mA

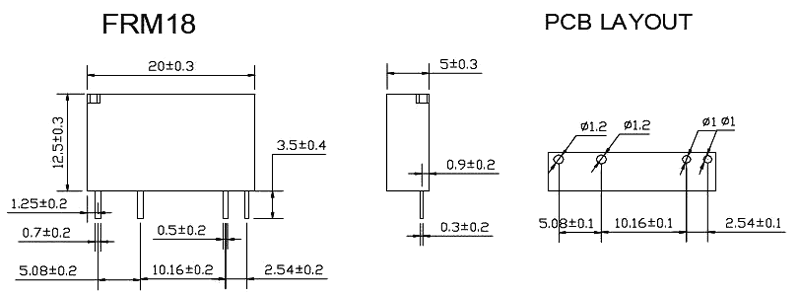

Dimensions  VIEW
Gross weight 2.552 g

Availability: With order
