Relays PCB - Relay electromagnetic, SPDT, Ucoil 9VDC, 16A/250VAC, 16A/24VDC

Prod code: 38602

RZ03-1C4-D009
Price:  2.76 €
VAT:  0.66 €
Final price with tax:  3.42 €
Amount:
Warning Long delivery time
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 9V DC
AC contacts rating @R 16A / 250V AC
DC contacts rating @R 16A / 24V DC
Contact current max. 16A
Switched voltage max. 300V DC,
Relay variant miniature
Mounting PCB
Coil resistance 200Ω
Coil voltage min. 6.3V DC
Body dimensions 29x12.7x15.7mm
Coil power consumption 400mW
Mechanical durability 1000000 cycles
Operating temperature -40...85°C
Relay series RZ
Contact material AgNi 90/10
Terminal pitch 5mm

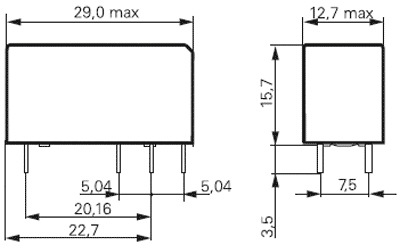

Dimensions  VIEW
Output configuration  VIEW
Gross weight 10.615 g

Availability: With order
