Relays PCB - Relay electromagnetic, SPDT, Ucoil 12VDC, 8A/250VAC, 8A/24VDC, 8A

Prod code: 38101
RM96-3011-35-1012 PDF

RM96-3011-35-1012
Price:  2.21 €
VAT:  0.53 €
Final price with tax:  2.75 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer RELPOL
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
AC contacts rating @R 8A / 250V AC
DC contacts rating @R 8A / 24V DC
Contact current max. 8A
Switched voltage max. 120V DC,   max. 440V AC
Relay variant miniature
Mounting PCB
Coil resistance 660Ω
Coil voltage min. 8.4V DC
Coil voltage max. 29.5V DC
Operate time 10ms
Body dimensions 30x10x16.2mm
Release time 5ms
Coil power consumption 300mW
IP rating IP67
Mechanical durability 20000000 cycles
Operating temperature -40...80°C
Weight 11g
Relay series RM96-1P
Contact resistance 100mΩ
Contact material AgSnO2
Terminal pitch 3.2mm
Height 16.2mm
Number of pins 5
OEM number 852843

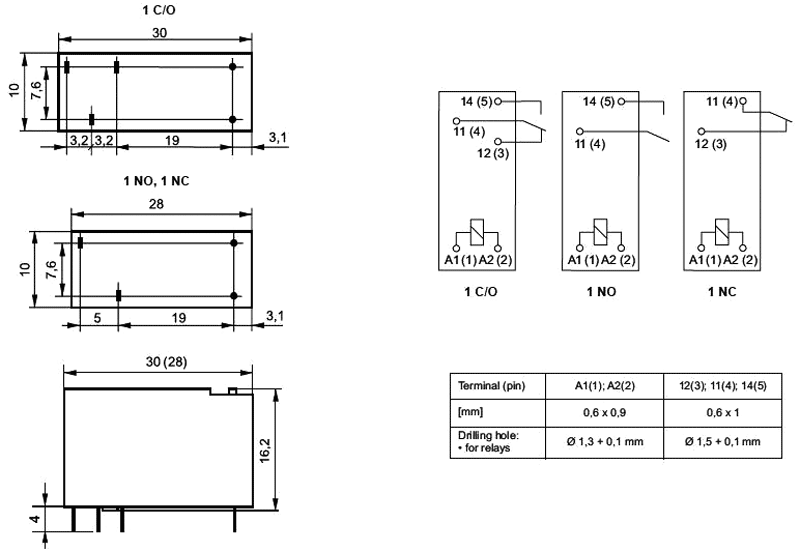

Dimensions  VIEW
Gross weight 11.21 g

Availability: With order
