Relays PCB - Relay electromagnetic, SPDT, Ucoil 10VDC, Icontacts max 35A	Prod code: 40789
PDF	FBR51ND10-W1

Click to enlarge Relay electromagnetic, SPDT, Ucoil 10VDC, Icontacts max 35A

Price:	2.08 €
VAT:	0.50 €
Final price with tax:	2.58 €
Amount:
Usually shipped within 1 business day.Usually shipped within 1 business day.

Specifications
Manufacturer	FUJITSU
Type of relay	electromagnetic
Contacts configuration	SPDT
Rated coil voltage	10V DC
Contact current max.	35A
DC contacts rating @R(at resistive load)	25A / 14V DC
Switched voltage	max. 16V DC
Relay variant	miniature
Mounting	PCB
Coil resistance	180Ω
Operate time	10ms
Body dimensions	15.5x12.1x13.7mm
Release time	5ms
Operating temperature	-40...85°C
Relay series	FBR51
Contact material	AgSnInO
Coil current	56mA

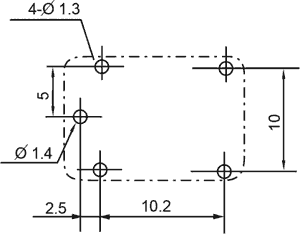

Dimensions	VIEW

Availability: On stock
