Relays PCB - Relay reed, SPST-NO, Ucoil 5VDC, 1A, max.250VDC, 10VA, Rcoil 500Ù

Prod code: 30628
R1-1A0550 PDF

R1-1A0550
Price:  2.98 €
VAT:  0.71 €
Final price with tax:  3.69 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer RAYEX ELECTRONICS
Type of relay reed
Contacts configuration SPST-NO
Rated coil voltage 5V DC
Contact current max. 1A
Switched voltage max. 250V DC
Switching capacity 10VA
Coil resistance 500Ω
Coil power consumption 50mW
Mounting PCB
Case SIL
Contact resistance 150mΩ
Coil voltage min. 3.75V DC
Coil voltage max. 16V DC
Operating temperature -40...85°C
Operate time 1ms
Release time 0.5ms
Contact material AgCdO
Body dimensions 19x5x7mm
Relay series R1
Terminal pitch 2.54mm

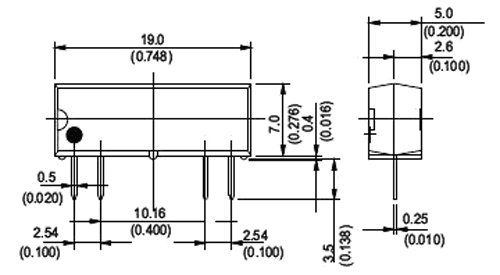

Dimensions  VIEW
Schematic diagram  VIEW
Gross weight 1.467 g

Availability: With order
