Relays PCB - Relay electromagnetic, SPDT, Ucoil 5VDC, 8A/250VAC, 8A/30VDC, 8A

Prod code: 37715
AZ6963-1CB-05DE PDF

AZ6963-1CB-05DE
Price:  2.08 €
VAT:  0.50 €
Final price with tax:  2.57 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer ZETTLER
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 5V DC
AC contacts rating @R 8A / 250V AC
DC contacts rating @R 8A / 30V DC
Contact current max. 8A
Switched voltage max. 240V DC,   max. 440V AC
Relay variant miniature
Mounting PCB
Coil resistance 113Ω
Coil voltage min. 3.5V DC
Coil voltage max. 11.6V DC
Operate time 7ms
Body dimensions 28.8x10.1x12.5mm
Release time 3ms
Coil power consumption 120mW
Operating temperature -40...85°C
Relay series AZ6963
Contact resistance 100mΩ
Terminal pitch 3.2mm

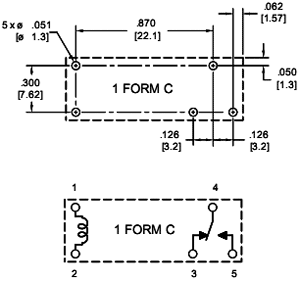

Output configuration  VIEW

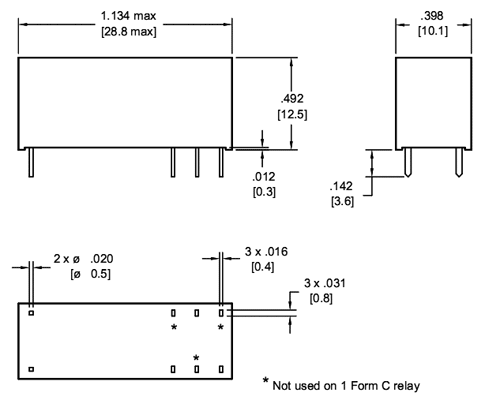

Dimensions  VIEW
Gross weight 8.163 g

Availability: On stock
