Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 24VDC, 16A/250VAC, 30mŮ

Prod code: 19977
G2R-1A-E-24DC PDF

G2R-1A-E-24DC
Price:  3.64 €
VAT:  0.87 €
Final price with tax:  4.51 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer OMRON
Relay type electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 24V DC
AC contacts rating 16 A / 250 VAC
DC contacts rating 16 A / 30 VDC
Contact current max. 16A
Switched voltage max 125V DC, max 380V AC
Relay variant miniature
Mounting PCB
Operate time 15ms
Body dimensions 29 x 13 x 25.5mm
Release time 5ms
Mechanical durability 20000000cycles
Operating temperature 40...70°C
Relay series G2R
Contact resistance 30mΩ
Terminal pitch 5mm
Coil current 21.8mA
Enclosure description Standard seal

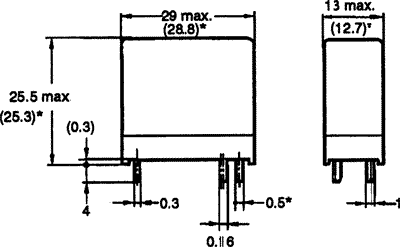

Dimensions  VIEW

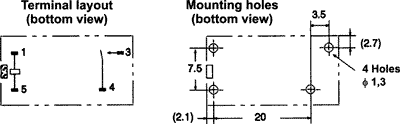

Output configuration  VIEW

Availability: On stock
