Relays PCB - Relay electromagnetic, DPDT, Ucoil 12VDC, 8A/250VAC, 8A/30VDC, 8A

Prod code: 39310
RT425012 PDF

RT425012
Price:  6.64 €
VAT:  1.59 €
Final price with tax:  8.24 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration DPDT
Rated coil voltage 12V DC
AC contacts rating @R 8A / 250V AC
DC contacts rating @R 8A / 30V DC
Contact current max. 8A
Switched voltage max. 300V DC,   max. 400V AC
Relay variant miniature
Mounting PCB
Coil resistance 360Ω
Coil voltage min. 8.4V DC
Operate time 7ms
Body dimensions 29x12.7x15.7mm
Release time 2ms
Coil power consumption 400mW
IP rating IP40
Operating temperature -40...70°C
Weight 14g
Relay series RT2
Contact material AgNi 90/10
Terminal pitch 5mm
Height 15.7mm
Number of pins 8

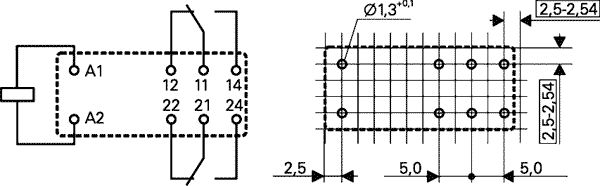

Output configuration  VIEW

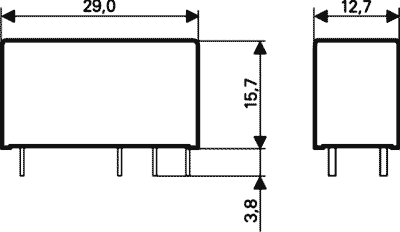

Dimensions  VIEW
Gross weight 12.91 g

Availability: With order
