Relays PCB - Relay electromagnetic, SPDT, Ucoil 5VDC, 8A/250VAC, 8A/28VDC, 10A

Prod code: 31911
RM12N2011351005 PDF

RM12N2011351005
Price:  3.00 €
VAT:  0.72 €
Final price with tax:  3.71 €
Amount:
Warning Long delivery time
Specifications
Manufacturer RELPOL
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 5V DC
AC contacts rating @R 8 A / 250 VAC
DC contacts rating @R 8 A / 28 VDC
Contact current max. 10A
Switched voltage max 440V AC, max 30V DC
Relay variant miniature
Mounting PCB
Coil resistance 113Ω
Coil voltage min. 3.5V DC
Coil voltage max. 6.5V DC
Operate time 10ms
Body dimensions 28.7 x 10.3 x 12.7mm
Release time 5ms
Coil power consumption 220mW
IP rating IP67
Mechanical durability 100000000cycles
Operating temperature 40...85°C
Weight 8g
Relay series RM12N
Contact resistance 100mΩ
Electrical life 100000cycles
Contact material AgNi
Terminal pitch 7.62mm

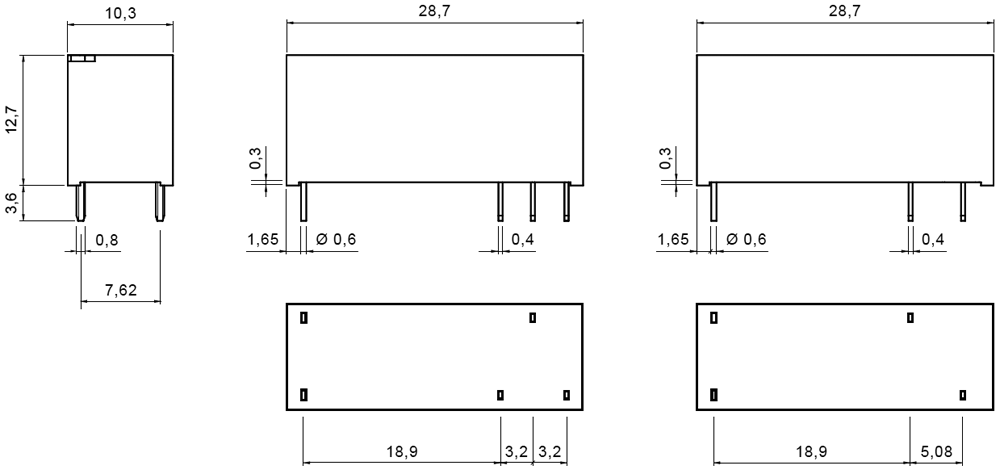

Dimensions  VIEW

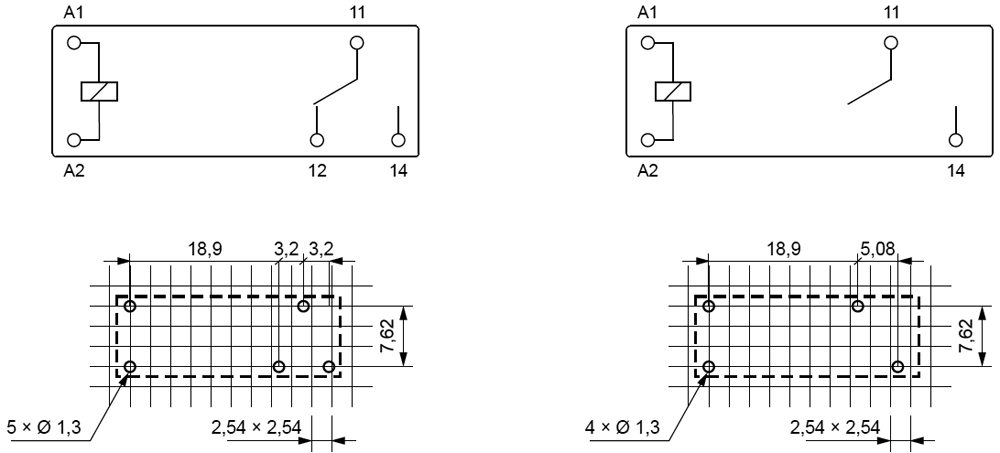

Leads  VIEW

Availability: With order
