Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 48VDC, 12A/250VAC, 12A

Prod code: 37516

LMR1A-48D PDF

LMR1A-48D

Price:  2.12 €
VAT:  0.51 €
Final price with tax:  2.62 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer Recoy/RAYEX ELECTRONICS
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 48V DC
AC contacts rating @R 12A / 250V AC
DC contacts rating @R 12A / 30V DC
Contact current max. 12A
Switched voltage max. 30V DC,   max. 250V AC
Relay variant miniature
Mounting PCB
Coil resistance 4.4kΩ
Operate time 15ms
Body dimensions 29x12.5x15.5mm
Release time 10ms
Coil power consumption 530mW
Operating temperature -40...80°C
Relay series LMR1
Contact resistance 100mΩ
Contact material AgCdO
Terminal pitch 3.5mm

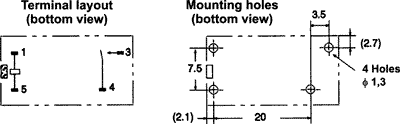

Output configuration  VIEW
Gross weight 10.75 g

Availability: On stock
