Relays PCB - Relay electromagnetic, SPDT, Ucoil 24VDC, 5A/250VAC, 5A/24VDC, 5A

Prod code: 38106

V23148-A1107-A101
Price:  10.07 €
VAT:  2.42 €
Final price with tax:  12.48 €
Amount:
Warning Long delivery time
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 24V DC
AC contacts rating @R 5A / 250V AC
DC contacts rating @R 5A / 24V DC
Contact current max. 5A
Switched voltage max. 60V DC,   max. 400V AC
Relay variant miniature
Mounting PCB
Coil resistance 1.78kΩ
Coil voltage min. 17.5V DC
Operate time 7ms
Body dimensions 21.2x16.2x14.9mm
Release time 3ms
Coil power consumption 324mW
Operating temperature -25...70°C
Relay series U
Switching capacity 1.25kVA
Contact material AgNi 90/10
Terminal pitch 5.08mm

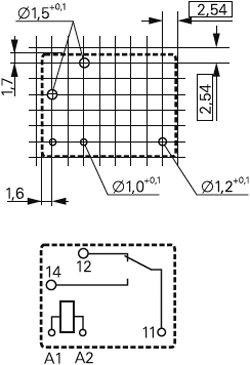

Output configuration  VIEW

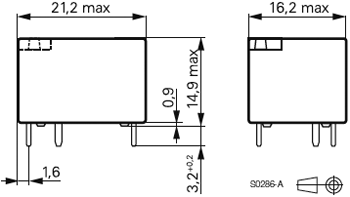

Dimensions  VIEW
Gross weight 8.42 g

Availability: With order
