Relays PCB - Relay electromagnetic, DPDT, Ucoil 5VDC, 0.5A/125VAC, 2A/30VDC

Prod code: 39162
RSM850B6112851005 PDF

RSM850B6112851005
Price:  2.71 €
VAT:  0.65 €
Final price with tax:  3.36 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer RELPOL
Type of relay electromagnetic
Contacts configuration DPDT
Rated coil voltage 5V DC
AC contacts rating @R 0.5A / 125V AC
DC contacts rating @R 2A / 30V DC
Contact current max. 2A
Switched voltage max. 30V DC,   max. 250V AC
Relay variant bistable,   subminiature
Mounting PCB
Coil resistance 250Ω
Coil voltage min. 3.75V DC
Coil voltage max. 14.5V DC
Operate time 3ms
Body dimensions 14.3x9.3x5.4mm
Release time 3ms
Coil power consumption 100mW
IP rating IP64
Mechanical durability 100000000 cycles
Operating temperature -40...70°C
Weight 1.5g
Relay series RSM850B
Contact resistance 50mΩ
Electrical life 100000 cycles
Contact material AgPd/Au 0,2μm
Terminal pitch 2.54mm
Relay features single coil
OEM number 2611711

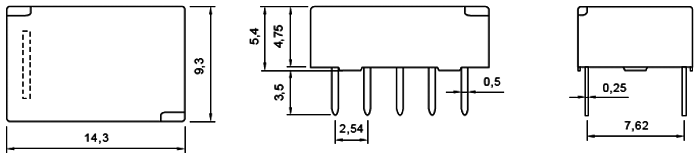

Dimensions  VIEW

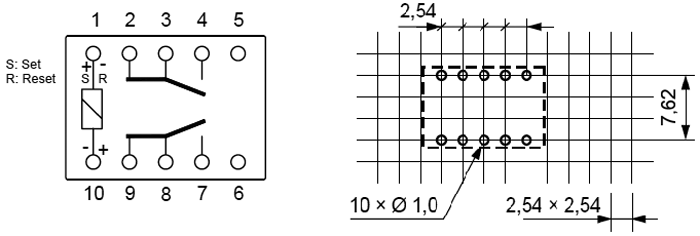

Leads  VIEW
Gross weight 1.328 g

Availability: On stock
