Relays PCB - Relay electromagnetic, DPDT, Ucoil 5VDC, 0.5A/120VAC, 1A/24VDC

Prod code: 36640
AZ822-2C-5DSE PDF

AZ822-2C-5DSE
Price:  1.71 €
VAT:  0.41 €
Final price with tax:  2.13 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer ZETTLER
Type of relay electromagnetic
Contacts configuration DPDT
Rated coil voltage 5V DC
AC contacts rating @R 0.5A / 120V AC
DC contacts rating @R 1A / 24V DC
Contact current max. 2A
Switched voltage max. 220V DC,   max. 250V AC
Relay variant miniature
Mounting PCB
Coil resistance 167Ω
Coil voltage min. 3.5V DC
Coil voltage max. 12.5V DC
Operate time 5ms
Body dimensions 20x9.8x12mm
Release time 2ms
Coil power consumption 74mW
IP rating IP64
Operating temperature -55...90°C
Weight 4.5g
Relay series AZ822
Contact resistance 50mΩ
Terminal pitch 5mm

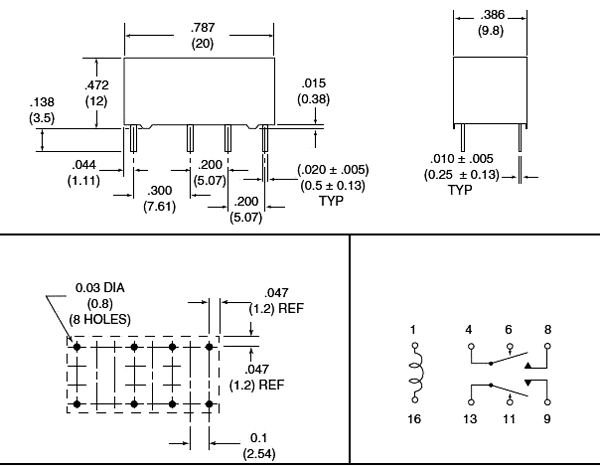

Dimensions  VIEW
Gross weight 5.26 g

Availability: On stock
