Specifications |
Manufacturer |
HONGFA RELAY |
Type of relay |
electromagnetic |
Contacts configuration |
SPST-NO |
Rated coil voltage |
12V DC |
Contact current max. |
40A |
Coil voltage min. |
9V DC |
Relay variant |
power |
Operating temperature |
-55...85°C |
Mounting |
PCB |
Body dimensions |
32.3x27.1x20mm |
Coil resistance |
155Ω |
AC contacts rating @R |
30A / 240V AC |
Contact material |
AgSnO2 |
Switched voltage |
max. 28V DC, max. 277V AC |
DC contacts rating @R |
20A / 28V DC |
Coil power consumption |
0.9W |
Contact resistance |
50mΩ |
Operate time |
15ms |
Release time |
10ms |
Mechanical durability |
10000000 cycles |
Switching capacity |
560W, 7.2kVA |

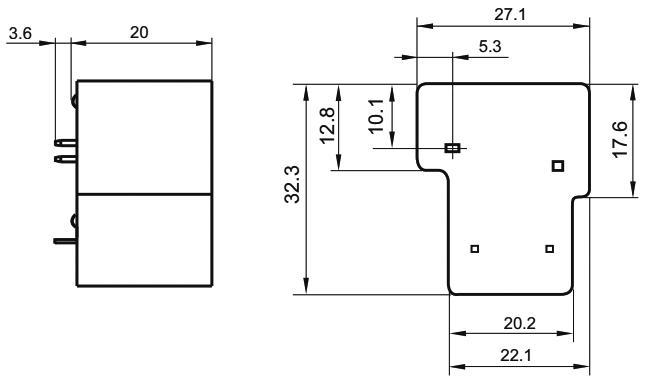

Dimensions |
VIEW |
|
|
