Specifications |
| Manufacturer |
OMRON |
| Relay type |
electromagnetic |
| Contacts configuration |
4PDT |
| Rated coil voltage |
24V DC |
| AC contacts rating |
5 A / 220 VAC |
| DC contacts rating |
5 A / 24 VDC |
| Contact current max. |
5A |
| Switched voltage |
max 250V AC, max 125V DC |
| Relay variant |
industrial |
| Mounting |
socket |
| Coil voltage min. |
19.2V DC |
| Relay series |
MY4 |
| Operating temperature |
55...70°C |
| Body dimensions |
28 x 21.5 x 36mm |
| Coil resistance |
650Ω |
| Mechanical durability |
100000000cycles |
| Operate time |
20ms |
| Release time |
20ms |
| Coil current |
37.7mA |
| Contact resistance |
100mΩ |
| Coil power consumption |
0.9W |
| Leads |
2.5x0.5mm connectors |

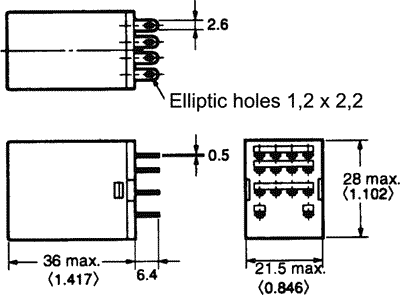

| Dimensions |
 VIEW |
| Output configuration |
VIEW |
| |
|
