Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 16A/250VAC, 16A

Prod code: 37505

RTHH4012WG
Price:  4.91 €
VAT:  1.18 €
Final price with tax:  6.09 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
AC contacts rating @R 16A / 250V AC
DC contacts rating @R 16A / 30V DC
Contact current max. 16A
Switched voltage max. 300V DC,   max. 400V AC
Relay variant miniature
Mounting THT
Coil resistance 360Ω
Coil voltage min. 8.4V DC
Operate time 8ms
Body dimensions 29x15.7x12.7mm
Release time 6ms
Coil power consumption 400mW
Mechanical durability 30000000 cycles
Operating temperature -40...105°C
Weight 14g
Relay series RTH
Contact material AgNi 90/10
Terminal pitch 5mm
Height 15.7mm
Number of pins 6

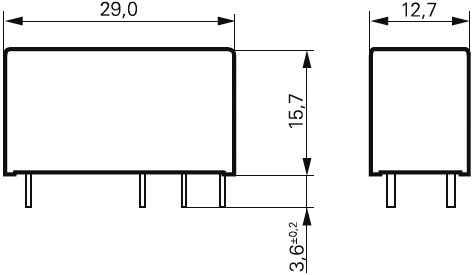

Dimensions  VIEW

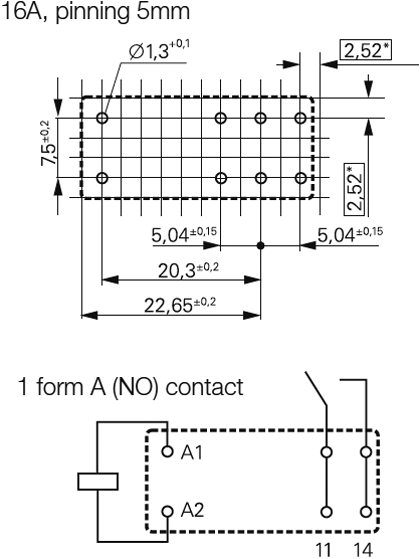

Output configuration  VIEW
Gross weight 12.93 g

Availability: With order
