Pwr sup.unit switched-mode, LED, 15W, 12VDC, 1.25A, 90÷264VAC - 6.99 EUR : acdcshop.gr


LED power supplies - Pwr sup.unit switched-mode, LED, 15W, 12VDC, 1.25A, 90÷264VAC	Prod code: 31358
PDF	APV-16-12

Click to enlarge Pwr sup.unit switched-mode, LED, 15W, 12VDC, 1.25A, 90÷264VAC

Price:	6.99 €
VAT:	1.68 €
Final price with tax:	8.66 €
Amount:
Usually shipped within 2-3 business days.

Specifications
Manufacturer	MEAN WELL
Pwr sup. unit type	switched-mode
Application	LED
Kind of power supply	volatage source
Power	15W
Output voltage	12V DC
Output current	1.25A
Supply voltage	90...264V AC, 127...370V DC
IP rating	IP42
Body dimensions	77 x 40 x 29mm
Power supply/converter features	rated parameters obtained at full load
Protection	overload, voltage growth, short-circuit
Weight	100g
Operating temperature	30...70°C
Electrical connection	150mm wires
Number of outputs	1
Series	APV-16
Efficiency	80%

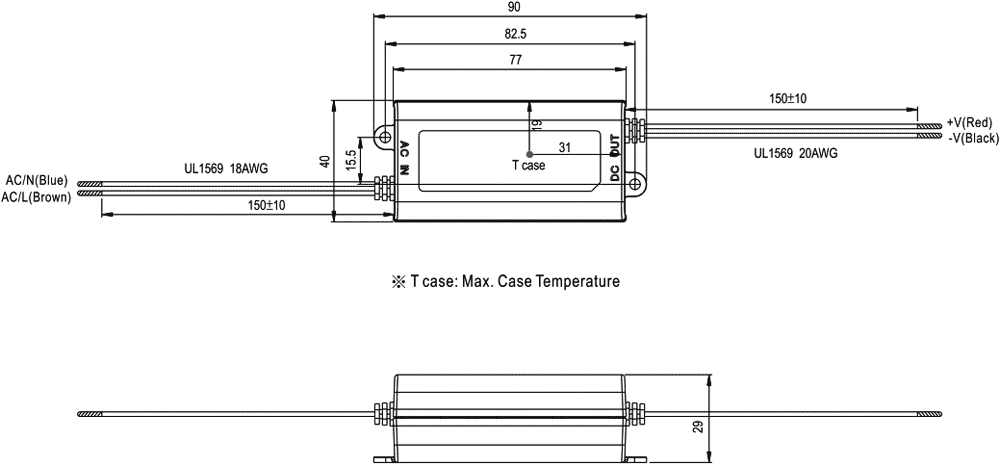

Dimensions	VIEW

Availability: With order
