LED power supplies - Pwr sup.unit switched-mode, LED, 100.8W, 24VDC, 4.2A, 90....264VAC

Prod code: 31588

LPV-100-24 PDF

LPV-100-24

Price:  27.23 €
VAT:  6.53 €
Final price with tax:  33.76 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer MEAN WELL
Pwr sup. unit type switched-mode
Application LED
Kind of power supply volatage source
Power 100.8W
Output voltage 24V DC
Output current 4.2A
Supply voltage 90...264V AC, 127...370V DC
IP rating IP67
Body dimensions 52 x 190 x 37mm
Power supply/converter features rated parameters obtained at full load
Protection overload, voltage growth, short-circuit
Weight 630g
Operating temperature 30...75°C
Electrical connection 600mm wires
Number of outputs 1
Series LPV-100
Efficiency 88%

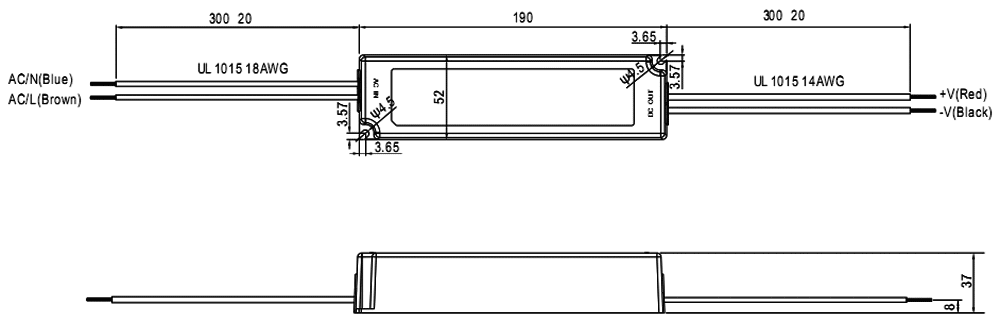

Dimensions  VIEW

Availability: With order
