Power supply switched-mode, LED, 264W, 12VDC, 22A, 90....305VAC, IP67 - 96.93 EUR : acdcshop.gr


LED power supplies - Power supply switched-mode, LED, 264W, 12VDC, 22A, 90....305VAC, IP67	Prod code: 36090
PDF	HLG-320H-12B

Click to enlarge Power supply switched-mode, LED, 264W, 12VDC, 22A, 90....305VAC, IP67

Price:	96.93 €
VAT:	23.26 €
Final price with tax:	120.19 €
Amount:
Usually shipped within 2-3 business days.

Specifications
Manufacturer	MEAN WELL
Type of power supply	switched-mode
Application	LED
Kind of power supply	CV+CC
Power	264W
Output voltage	12V DC
Output current	22A
Supply voltage	90...305V AC, 127...431V DC
IP rating	IP67
Body dimensions	252x90x43.8mm
Protection	overheating, overload, short-circuit, voltage growth
Weight	1.88kg
Operating temperature	-40...70°C
Electrical connection	300mm wires
Number of outputs	1
Series	HLG-320H
Efficiency	91%
Power supply/converter features	rated parameters obtained at full load

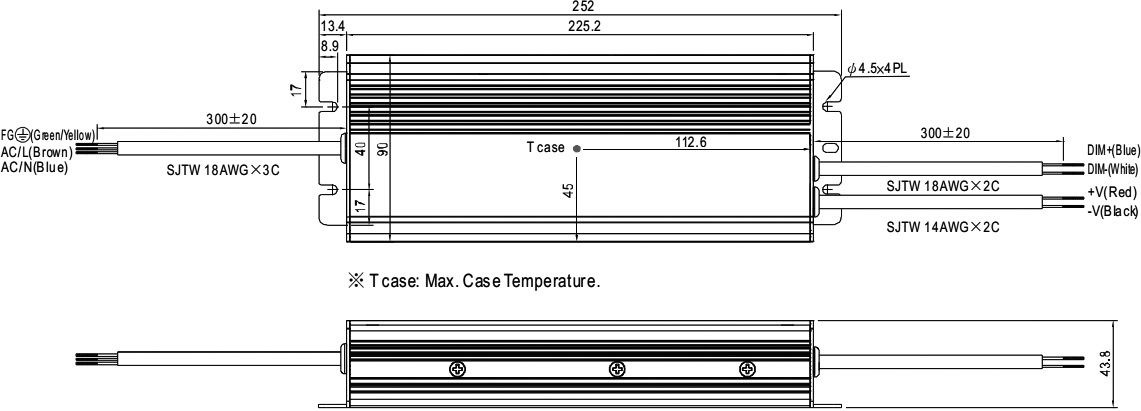

Dimensions	VIEW
Gross weight	1980.5 g

Additional functions

Availability: With order
