Fan AC, axial, 230VAC, 92x92x25mm, 51(±7%)m3/h, 37dBA, 2350rpm - 16.82 EUR : acdcshop.gr


Ανεμιστήρας AC - Fan AC, axial, 230VAC, 92x92x25mm, 51(±7%)m3/h, 37dBA, 2350rpm	Κωδικός: 21162
PDF	SF23092A2092HBL

Κάντε Κλικ για Μεγέθυνση Fan AC, axial, 230VAC, 92x92x25mm, 51(±7%)m3/h, 37dBA, 2350rpm

Τιμή χωρίς ΦΠΑ:	16.82 €
Αξία ΦΠΑ:	4.04 €
Τελική με ΦΠΑ:	20.86 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.

Specifications
Manufacturer	SUNON
Fan type	AC
Fan kind	axial
Supply voltage	230V AC
Fan dimensions	92x92x25mm
Power consumption	14.5W
Rated current	70mA
Fans efficiency	51 (±7%)m³/h
Noise level	37dBA
Bearing type	ball bearing
Rotational rate/speed	2350rpm
Weight	280g
Current and power consumption tolerance	15%
Frequency	50Hz
Min. insulation resistance	500MΩ
Fan material	thermoplastic
Enclosure material	aluminium
Insulation class	B
Operating temperature	10...70°C
Leads	2 leads
Static pressure	3.3mm H₂O
Flammability rating	UL94V-0
Cable length	310mm
Wire size	24AWG

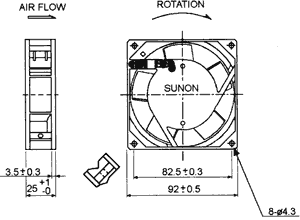

Dimensions	VIEW

Διαθεσιμότητα: Με παραγγελία
