Transformers PCB - Encapsulated trafo, PCB mount, 0,5VA, 230/9V

Prod code: 1273

TEZ0.5/D/9V PDF

TEZ0.5/D/9V

Price:  4.68 €
VAT:  1.12 €
Final price with tax:  5.80 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer BREVE TUFVASSONS
Transformer type encapsulated
Power 0.5VA
Primary voltage 230V AC
Secondary voltage 1 9V
Mounting PCB
Pri./sec. insulation strength 4kV/60s
Sealing IP00
Conform to the norm PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
Thermal class Ta60B
Secondary winding terminals 6-7
Primary winding terminals 1-4
Weight 50g
A dimension 22mm
A1 dimension 15mm
A2 dimension 15mm
B dimension 24mm
C dimension 19mm

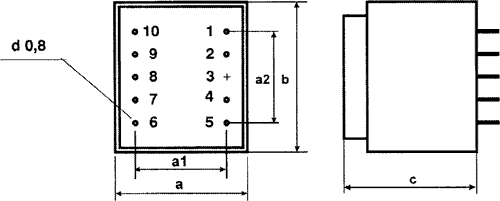

Dimensions  VIEW
Schematic diagram  VIEW

Availability: With order
