Terminal Blocks - Connector PCB terminal block, terminal, 67A, 690V, PIN 3, on PCBs
Prod code:
42823
MKDSP10/3-10.16
Click to enlarge
Price:
5.77 €
VAT:
1.38 €
Final price with tax:
7.15 €
Amount:
Usually shipped within 2-3 business days.
Usually shipped within 2-3 business days.
Specifications
Manufacturer
PHOENIX CONTACT
Type of connector
PCB terminal block
Connector
terminal
Current rating
67A
Rated voltage
690V
Number of pins
3
Spatial orientation
angled 90°
Mechanical mounting
on PCBs
Contact plating
tinned
Colour
green
Flammability rating
UL94V-0
Body material
polyamide
Wire size
20AWG...6AWG
Depth
18.3mm
Length
30.48mm
Connector pinout layout
1x3
Wire cross-section
0.5...16mm
2
Contacts pitch
10.16mm
Number of ways
3
Height
29.3mm
Connectors features
assembling possibility
Conform to the norm
VDE
Operating temperature
-40...105°C
Electrical mounting
screw terminal, THT

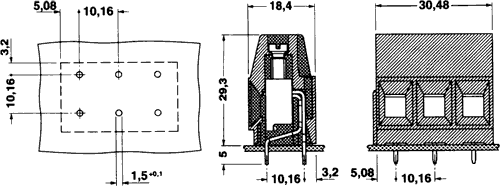

Dimensions
VIEW
Availability:
With order
