Specifications |
| Manufacturer |
SCI |
| Type of switch |
ROCKER |
| Contacts configuration |
SPST |
| Number of positions |
2 |
| Stable positions number |
2-position |
| Switching method |
OFF-ON |
| DC contacts rating @R |
16A / 12V DC |
| Key button colour |
orange |
| IP rating |
IP65 |
| Illumination |
LED 12V DC |
| Max. contact resistance: |
50mΩ |
| Body colour |
black |
| Flammability rating |
UL94V-2 |
| Operating temperature |
-20...85°C |
| Leads |
6,3x0,8mm connectors |
| Panel thickness |
max. 4.5mm |
| Mounting hole diameter |
29.4x13.8mm |
| Button marking |
blank |
| Backlight colour |
yellow |
| Shape |
rectangular |
| Manufacturer series |
R13-238-DC |
| Body dimensions |
31.5x18.5x21.1mm |
| Dielectric strenght |
1.5kV AC |

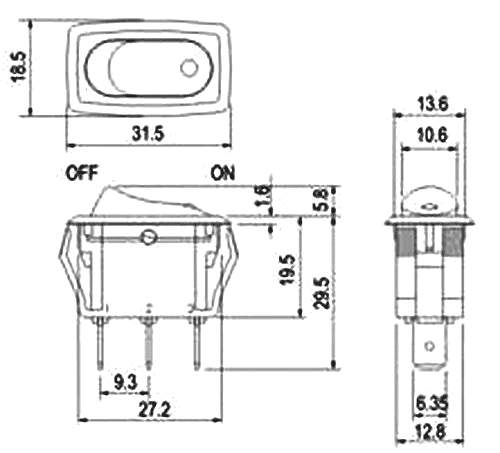

| Dimensions |
 VIEW |
| |
|
