Äéáêüðôçò - Switch toggle, Pos 3, 3P3T, ON-OFF-ON, 10A/250VAC, -25....70°C, 50mÙ

Prod code: 39144

R13432D101 PDF

R13432D101

Price:  5.75 €
VAT:  1.38 €
Final price with tax:  7.13 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer SCI
Type of switch toggle
Number of positions 3
Contacts configuration 3P3T
Switching method ON-OFF-ON
AC contacts rating @R 10A / 250V AC
Leads 6,3x0,8mm connectors
Terminals plating nickel
Operating temperature -25...70°C
Kind of toggle round
Mounting hole diameter Ø12mm
Knob height 16.5mm
Max. contact resistance: 50mΩ
Body dimensions 33.4x27.5x18.9mm
Actuator material metal
Manufacturer series R13-432
Panel thickness max. 5mm
Body material bakelite
Test voltage 1.5kV
Flammability rating UL94HB
Stable positions number 3

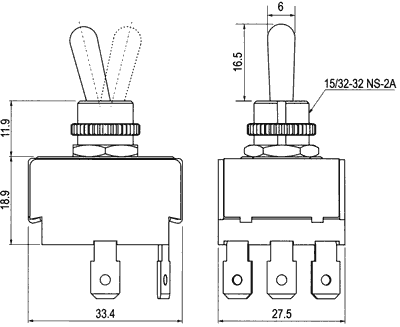

Dimensions  VIEW
Panel cutout  VIEW
Gross weight 46.25 g

Availability: On stock
