Relays PCB - Relay electromagnetic, SPDT, Ucoil 24VDC, 12A/250VAC, 12A/24VDC

Prod code: 36861
RZ01-1C4-D024 PDF

RZ01-1C4-D024
Price:  2.66 €
VAT:  0.64 €
Final price with tax:  3.30 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 24V DC
AC contacts rating @R 12A / 250V AC
DC contacts rating @R 12A / 24V DC
Contact current max. 12A
Switched voltage max. 300V DC,   max. 400V AC
Relay variant miniature
Mounting PCB
Coil resistance 1.44kΩ
Coil voltage min. 16.8V DC
Body dimensions 29x12.7x15.7mm
Coil power consumption 400mW
Mechanical durability 1000000 cycles
Operating temperature -40...85°C
Relay series RZ
Contact material AgNi 90/10
Terminal pitch 3.5mm

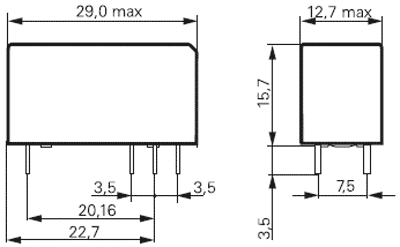

Dimensions  VIEW
Output configuration  VIEW
Gross weight 10.48 g

Availability: On stock
