Relays PCB - Relay electromagnetic, SPDT, Ucoil 12VDC, 8A/250VAC, 8A/30VDC

Prod code: 39777
RY611012 PDF

RY611012
Price:  2.69 €
VAT:  0.65 €
Final price with tax:  3.34 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer TE Connectivity
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 12V DC
AC contacts rating @R 8A / 250V AC
DC contacts rating @R 8A / 30V DC
Contact current max. 8A
Switched voltage max. 300V DC,   max. 400V AC
Relay variant miniature
Mounting PCB
Coil resistance 620Ω
Operate time 9ms
Body dimensions 28.5x10.1x12.3mm
Release time 5ms
Coil power consumption 220mW
IP rating IP67
Mechanical durability 30000000 cycles
Operating temperature -40...85°C
Weight 8g
Relay series RYII
Switching capacity 2000VA
Contact material AgNi
Terminal pitch 3.2mm
Coil current 19.3mA

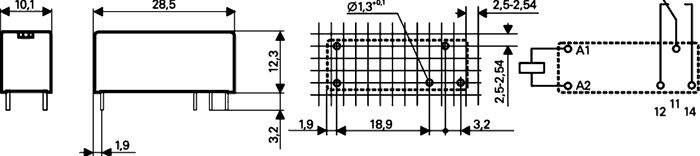

Dimensions  VIEW
Gross weight 7.935 g

Availability: With order
