Relays - Relay electromagnetic, SPST-NO, Ucoil 24VDC, 5A/250VAC, 5A/30VDC

Prod code: 38553
FTR-MYAA024D PDF

FTR-MYAA024D
Price:  2.89 €
VAT:  0.69 €
Final price with tax:  3.58 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer FUJITSU
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 24V DC
AC contacts rating @R 5A / 250V AC
DC contacts rating @R 5A / 30V DC
Contact current max. 5A
Switched voltage max. 125V DC,   max. 277V AC
Relay variant miniature
Mounting PCB
Coil resistance 5.24kΩ
Operating temperature -40...90°C
Relay series FTR-MY
Contact material Ag/Au
Terminal pitch 5.08mm

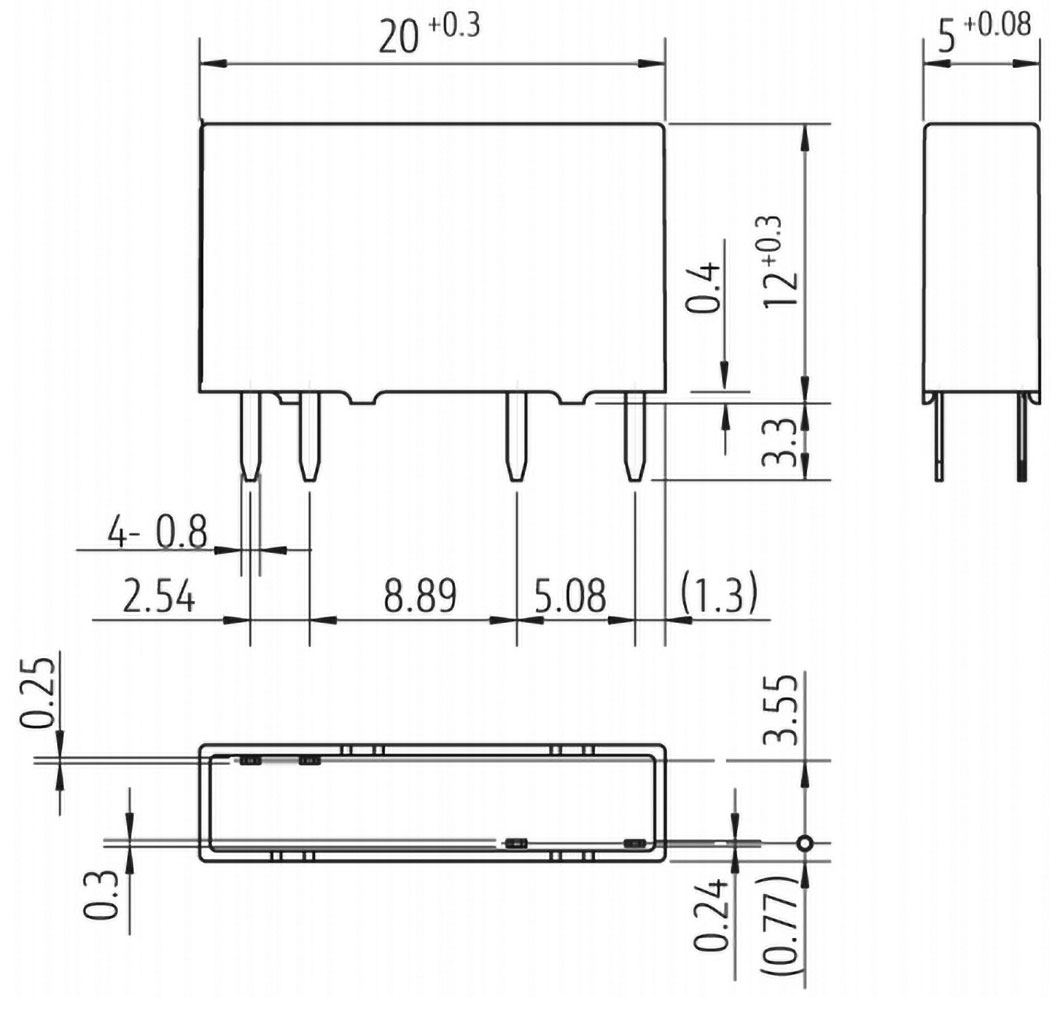

Dimensions  VIEW

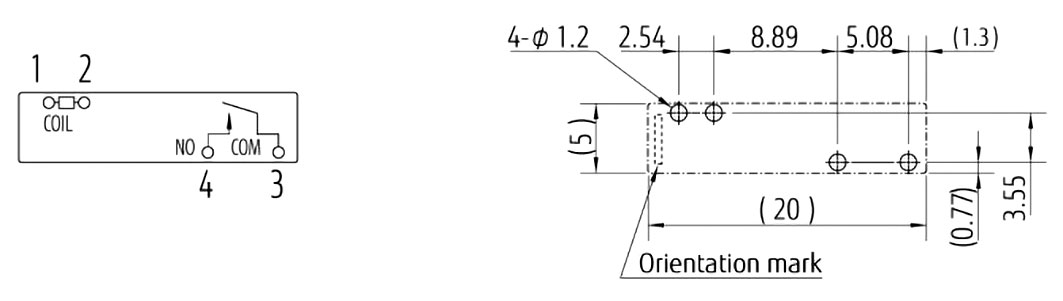

Output configuration  VIEW
Gross weight 2.447 g

Availability: With order
