Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 10A, 10A/250VAC

Prod code: 42593
pVersion=0046&contRep=ZT&docId=005056AB752F1ED6AFC135B8CE423E27&compId=HF32FA-G_en.pdf PDF

HF32FA-G/012-HSL1
Price:  2.02 €
VAT:  0.48 €
Final price with tax:  2.50 €
Amount:
Usually shipped within 1 business day.
Specifications
ManufacturerHONGFA RELAY
Type of relayelectromagnetic
Contacts configurationSPST-NO
Rated coil voltage12V DC
Contact current max.10A
AC contacts rating @R10A / 250V AC
Switched voltagemax. 250V AC
Relay variantsubminiature
MountingPCB
Coil resistance620Ω
Coil voltage min.9V DC
Coil voltage max.20.4V DC
Operate time8ms
Body dimensions17.6x10.1x12.3mm
Release time4ms
Coil power consumption230mW
Operating temperature-40...85°C
Contact resistance70mΩ
Contact materialAgSnO2

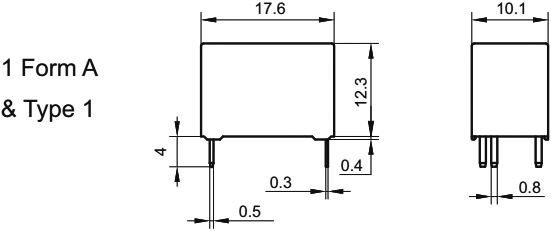

Dimensions VIEW

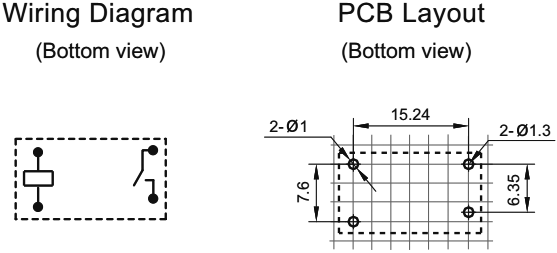

Output configuration VIEW
Availability: On stock
