Transformer - Transformer mains, 63VA, 400VAC, 230V, Leads terminal block, IP00

Prod code: 36627
STM63/400/230V PDF

STM63/400/230V
Price:  32.07 €
VAT:  7.70 €
Final price with tax:  39.77 €
Amount:
Warning Long delivery time
Specifications
Manufacturer BREVE TUFVASSONS
Type of transformer mains
Power 63VA
Primary voltage 400V AC
Secondary voltage 1 230V
Leads terminal block
Mounting screw type
Weight 1.1kg
IP rating IP00
Thermal class B
Conform to the norm PN-EN 61558-2-4,   PN-EN 61558-2-6
Insulation class I

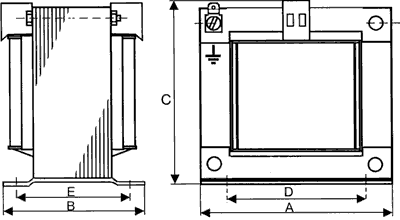

A dimension 78mm
B dimension 60mm
C dimension 85mm
D dimension 56mm
E dimension 48mm
Body dimensions 78x85x60mm
Dimensions  VIEW
Gross weight 1202.1 g

Availability: With order
