Transformers PCB - Transformer encapsulated, 55VA, 230VAC, 12V, 4.58A, Mounting PCB

Prod code: 21405

TSZZ45/12V PDF

TSZZ45/12V

Price:  20.84 €
VAT:  5.00 €
Final price with tax:  25.84 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer INDEL
Type of transformer encapsulated
Power 55VA
Primary voltage 230V AC
Secondary voltage 1 12V
Secondary winding current 1 4.58A
Mounting PCB
Electrical insulation strength 4kV/60s
IP rating IP00
Conform to the norm PN-EN 61558
Thermal class Ta40B

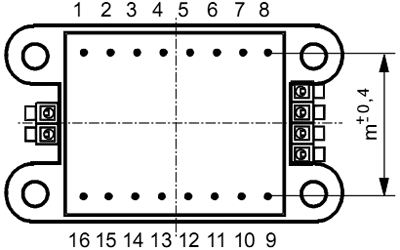

Secondary winding terminals 9-13
Primary winding terminals 1-7
Insulation class II
Weight 950g
A dimension 70mm
A1 dimension 47.2mm
B dimension 61.2mm
B1 dimension 41.2mm
C dimension 56.5mm
C1 dimension 46.8mm
D dimension 77.5mm
D1 dimension 47.5mm
M dimension 35mm
P dimension 5mm
Schematic diagram  VIEW

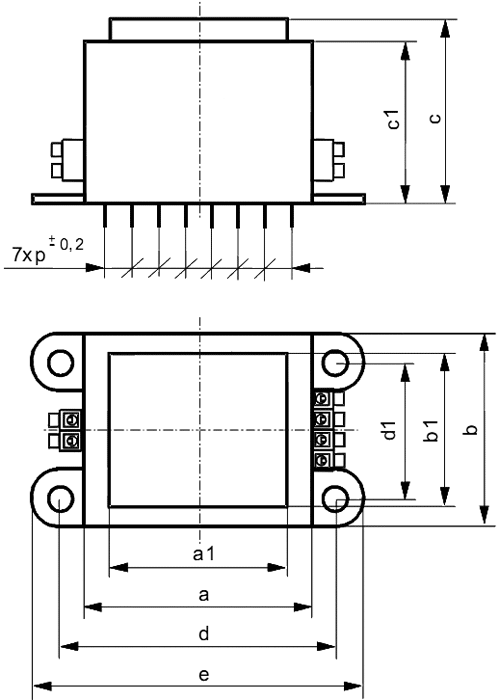

Dimensions  VIEW
Gross weight 964.8 g

Availability: On stock
