Διακόπτης - Switch vandal resistant, Pos 2, SPDT, 0.5A/220VAC, 1A/24VDC, IP67

Prod code: 41251

LAS1-AGQ-E.pdf PDF

V19-11R-220G-S

Price:  9.52 €
VAT:  2.29 €
Final price with tax:  11.81 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer ONPOW
Type of switch vandal resistant
Number of positions 2
Contacts configuration SPDT
AC contacts rating @R(at resistive load)at resistive load 0.5A / 220V AC
DC contacts rating @R(at resistive load)at resistive load 1A / 24V DC
IP rating IP67
Switching method(the position in bracket indicates momentary position.)The position in bracket indicates momentary position. ON-(ON)
Illumination LED, ring
Backlight colour green
Illumination voltage 220V
Leads for soldering
Operating temperature -20...55°C
Electrical life 50000 cycles
Max. contact resistance: 50mΩ
Operating Force 5N
Mechanical durability 1000000 cycles
Button shape flat
Mounting hole diameter Ø19mm
Body colour silver
Body material stainless steel
Ring shape rounded
Test voltage 2kV
Contact material silver alloy
Stable positions number 1
Related items S04-11D

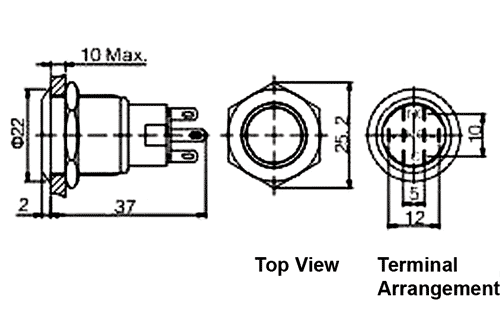

Dimensions  VIEW

Availability: With order
