Button - Switch vandal resistant, Pos 2, SPDT, 0.5A/220VAC, 1A/24VDC, IP67

Prod code: 39820

V16-11HR-12G-S PDF

V16-11HR-12G-S

Price:  7.89 €
VAT:  1.89 €
Final price with tax:  9.79 €
Amount:
Warning Long delivery time
Specifications
Manufacturer ONPOW
Type of switch vandal resistant
Number of positions 2
Contacts configuration SPDT
AC contacts rating @R 0.5A / 220V AC
DC contacts rating @R 1A / 24V DC
IP rating IP67
Switching method ON-(ON)
Illumination LED 12V AC/DC,   ring
Backlight colour green
Leads for soldering
Operating temperature -20...55°C
Electrical life 50000 cycles
Max. contact resistance: 50mΩ
Operating Force 4N
Mechanical durability 200000 cycles
Button shape prominent
Mounting hole diameter Ø16mm
Body colour silver
Body material stainless steel
Ring shape rounded
Test voltage 2kV
Contact material silver alloy
Stable positions number 1

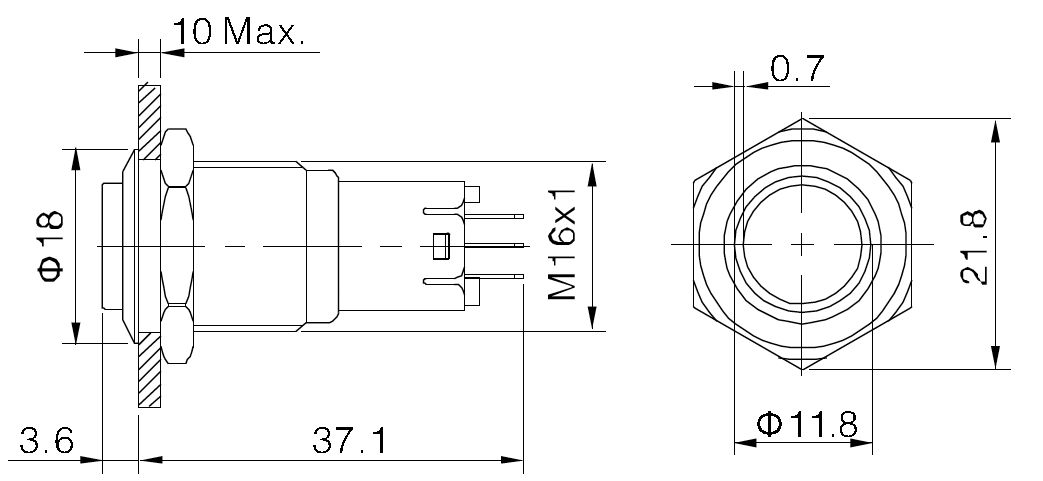

Dimensions  VIEW
Gross weight 12.93 g

Availability: With order
