Πιεζοηλεκτρικός διακόπτης - Switch piezoelectric, Positions 2, SPST-NO, 0.2A/24VAC, IP68

Κωδικός: 35324

PS165Z10Y01 PDF

PS165Z10Y01

Τιμή χωρίς ΦΠΑ:  12.18 €
Αξία ΦΠΑ:  2.92 €
Τελική με ΦΠΑ:  15.10 €
Ποσότητα:
* Αποστολή σε 2-3 εργάσιμες ημέρες.
Specifications
Manufacturer ONPOW
Type of switch piezoelectric
Number of positions 2
Stable positions number 1-position
Contacts configuration SPST-NO
AC contacts rating @R 0.2A / 24V AC
DC contacts rating @R 0.2A / 24V DC
IP rating IP68
Switching method OFF-(ON)
Illumination none
Backlight colour none
Leads 30mm leads
Operating temperature -40...75°C
Electrical life 50000000cycles
Operating Force 6N
Mounting hole diameter Ø16mm
Button shape concave
Body material aluminium
Body colour silver
Switched voltage max. 24V AC,
Contact current max. 0.2A

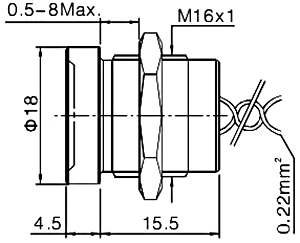

Dimensions  VIEW
Gross weight 13.1 g

Διαθεσιμότητα: Με παραγγελία
