--- - Switch piezoelectric, Positions 2, SPST-NO, 0.2A/24VAC, IP68

Prod code: 21553

PS161P10Y01 PDF

PS161P10Y01

Price:  12.87 €
VAT:  3.09 €
Final price with tax:  15.95 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer ONPOW
Type of switch piezoelectric
Number of positions 2
Stable positions number 1-position
Contacts configuration SPST-NO
AC contacts rating @R 0.2A / 24V AC
DC contacts rating @R 0.2A / 24V DC
IP rating IP68
Switching method OFF-(ON)
Illumination none
Backlight colour none
Leads 30mm leads
Operating temperature -40...75°C
Electrical life 50000000cycles
Operating Force 6N
Mounting hole diameter Ø16mm
Button shape flat
Body material aluminium
Body colour silver
Switched voltage max. 24V AC,
Contact current max. 0.2A

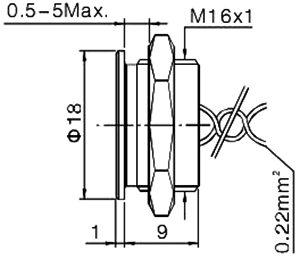

Dimensions  VIEW
Gross weight 10.1 g

Availability: With order
