| Specifications |
| Manufacturer | ONPOW |
| Type of switch | piezoelectric |
| Number of positions | 2 |
| Stable positions number | 1 |
| Contacts configuration | SPST-NO |
| AC contacts rating @R | 0.2A / 24V AC |
| DC contacts rating @R | 0.2A / 24V DC |
| IP rating | IP68 |
| Switching method | OFF-(ON) |
| Illumination voltage | 24V DC |
| Leads | cables |
| Lead length | 0.3m |
| Electrical life | 50000000 cycles |
| Contact current max. | 0.2A |
| Operating Force | 6N |
| Mounting hole diameter | Ø19mm |
| Button shape | flat |
| Backlight colour | red |
| Body material | aluminium |
| Body colour | silver |
| Operating temperature | -40...75°C |
| Illumination | LED, ring |
| Switched voltage | max. 24V AC, max. 24V DC |

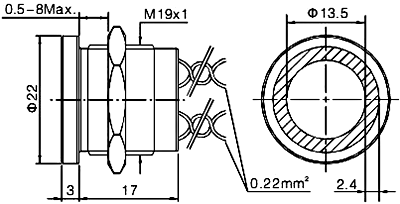

| Dimensions |  VIEW |
|
