Connector D-Sub - Special D-Sub, PIN 17(2+15), plug, female, for cable, soldering

Prod code: 38785
DHPS25F-17/2 PDF

DHPS25F-17/2
Price:  7.38 €
VAT:  1.77 €
Final price with tax:  9.15 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer CONEC
Type of connector Special D-Sub
Number of pins 17 (2+15)
Connector plug
Kind of connector female
Mechanical mounting for cable
Electrical mounting soldering
Connector variant w/o special terminals
A dimension 53.42mm
C dimension 47.04mm
Max. operating voltage 250V
Type of pin configuration 17/2
Operating temperature -55...125°C

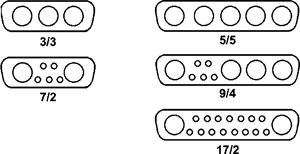

Schematic diagram  VIEW

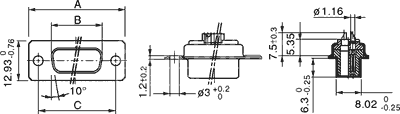

Dimensions  VIEW
Gross weight 10.65 g

Availability: With order
