Bridge Rectifiers - Single-phase bridge rectifier, Urmax 100V, If 10A, Ifsm 220A

Prod code: 33182

GBU10B PDF

GBU10B

Price:  0.63 €
VAT:  0.15 €
Final price with tax:  0.79 €
Amount:
Warning Long delivery time
Specifications
Manufacturer DC COMPONENTS
Type of semiconductor component single-phase bridge rectifier
Max. off-state voltage 100V
Load current 10A
Max. forward impulse current 220A
Case GBU
Electrical mounting THT
Features of semiconductor devices glass passivated
Version flat
Leads for soldering
Kind of package tube

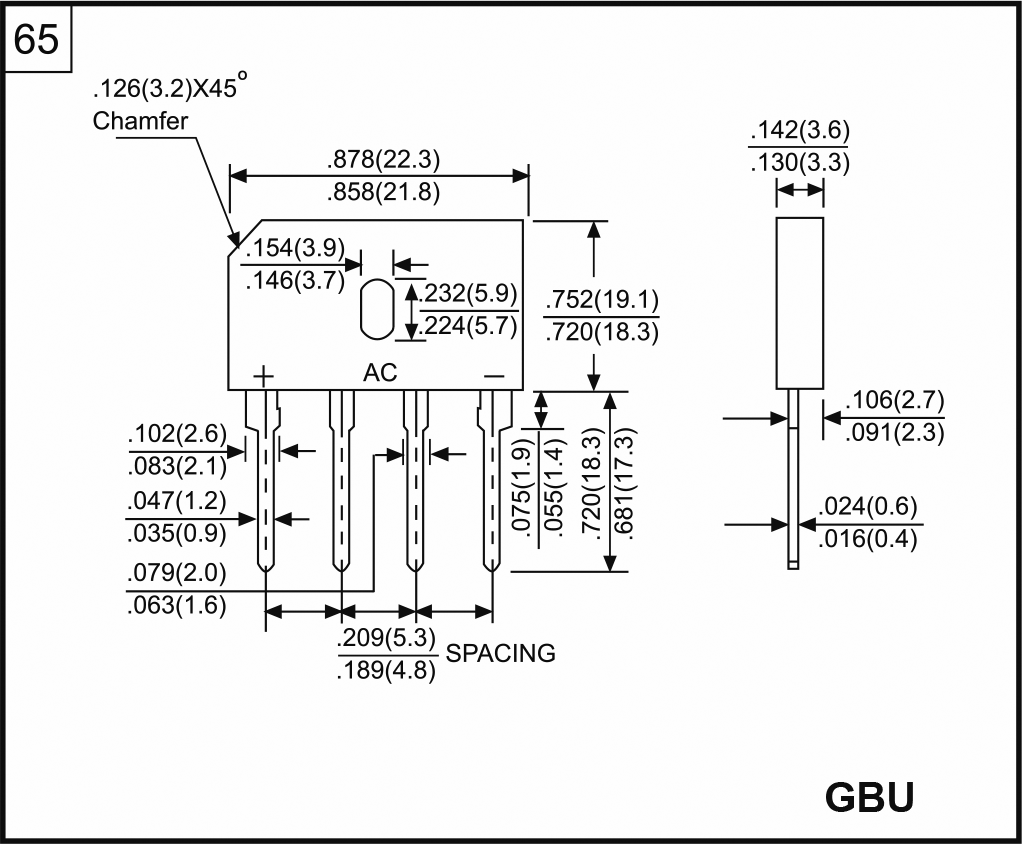

Dimensions  VIEW
Gross weight 3.925 g

Availability: With order
