| Specifications |
| Manufacturer | PANASONIC |
| Type of relay | solid state |
| Control voltage | 6V DC |
| Control current | 50mA |
| Max. operating current | 900mA |
| Switched voltage | max. 600V AC |
| Manufacturer series | AQ-H |
| Relay variant | 1-phase |
| Body dimensions | 9.78x6.4x3.4mm |
| Switching method | zero voltage switching |
| Operating temperature | -30...85°C |
| Mounting | PCB, THT |

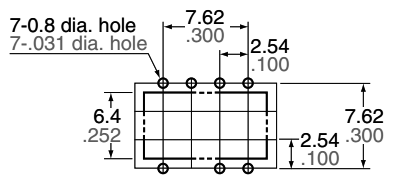

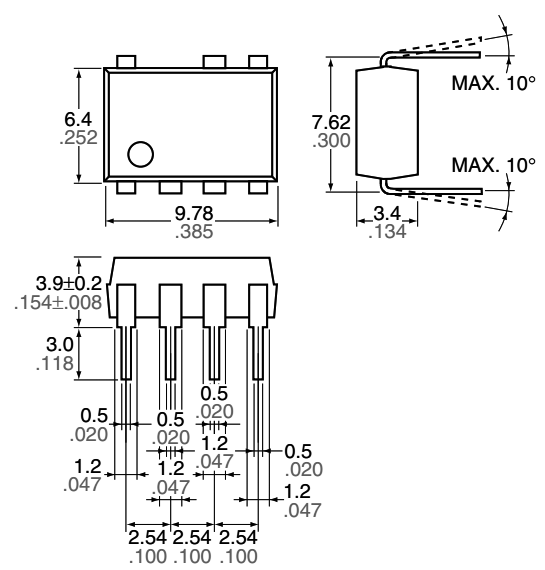

| Dimensions |  VIEW |
| Output configuration | VIEW |
|
