Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 12VDC, 20A/250VAC, 20A

Prod code: 29772
HF115F-Q/012-1H3 PDF

HF115F-Q/012-1H3
Price:  3.99 €
VAT:  0.96 €
Final price with tax:  4.95 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer HONGFA RELAY
Relay type electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 12V DC
AC contacts rating 20 A / 250 VAC
DC contacts rating 20 A / 24 VDC
Contact current max. 20A
Switched voltage max 440V AC, max 300V DC
Relay variant miniature
Mounting PCB
Coil resistance 360Ω
Coil voltage min. 8.4V DC
Coil voltage max. 18V DC
Operate time 15ms
Body dimensions 45 x 15.7 x 12.7mm
Release time 8ms
Coil power consumption 400mW
Operating temperature 40...125°C
Contact resistance 100mΩ
Contact material AgNi
Terminal pitch 5mm

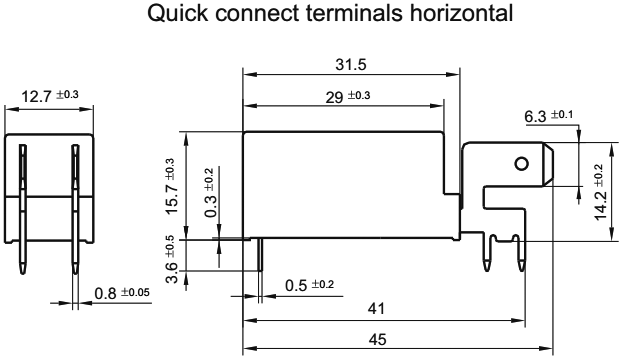

Dimensions  VIEW
Output configuration  VIEW

Availability: On stock
