Relays PCB - Relay electromagnetic, SPDT, Ucoil 5VDC, 17A/125VAC, 17A, PCB

Prod code: 39787
HF152FD/5-1Z PDF

HF152FD/5-1Z
Price:  2.53 €
VAT:  0.61 €
Final price with tax:  3.14 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer HONGFA RELAY
Type of relay electromagnetic
Contacts configuration SPDT
Rated coil voltage 5V DC
AC contacts rating @R 17A / 125V AC
Contact current max. 17A
Switched voltage max. 400V AC
Relay variant subminiature
Mounting PCB
Coil resistance 70Ω
Coil voltage min. 3.75V DC
Coil voltage max. 6.5V DC
Operate time 10ms
Body dimensions 21x16x20.6mm
Release time 5ms
Coil power consumption 360mW
Operating temperature -40...105°C
Contact resistance 100mΩ
Contact material AgNi

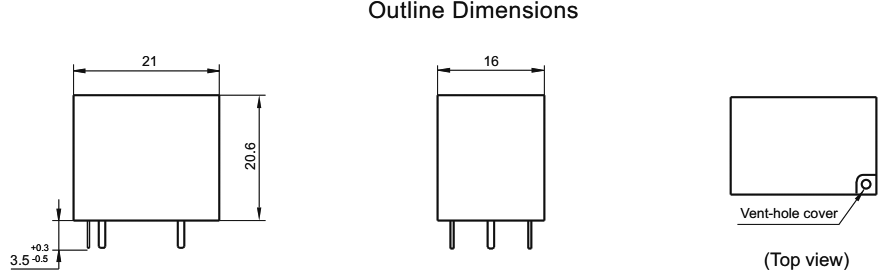

Dimensions  VIEW

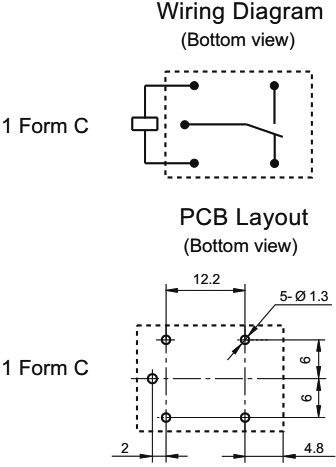

Output configuration  VIEW
Gross weight 11.63 g

Availability: On stock
