Relays PCB - Relay electromagnetic, SPST-NO, Ucoil 24VDC, 8A/250VAC, 8A/30VDC

Prod code: 38135

RM40-Z-24 PDF

RM40-Z-24

Price:  4.63 €
VAT:  1.11 €
Final price with tax:  5.74 €
Amount:
Usually shipped within 1 business day.
Specifications
Manufacturer RELPOL
Type of relay electromagnetic
Contacts configuration SPST-NO
Rated coil voltage 24V DC
AC contacts rating @R 8A / 250V AC
DC contacts rating @R 8A / 30V DC
Contact current max. 8A
Switched voltage max. 30V DC,   max. 440V AC
Relay variant miniature
Mounting PCB
Coil resistance 2.88kΩ
Operate time 8ms
Body dimensions 20x10x10.5mm
Release time 4ms
Coil power consumption 200mW
IP rating IP64
Operating temperature -40...85°C
Relay series RM40
Contact resistance 100mΩ
Contact material AgSnO2
Terminal pitch 7.62mm
OEM number 2611688

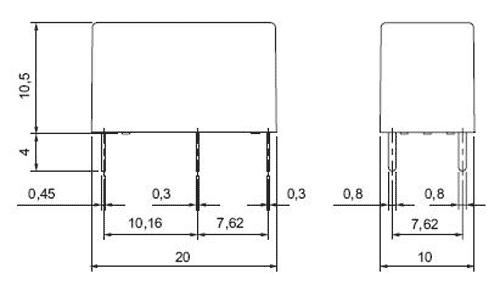

Dimensions  VIEW

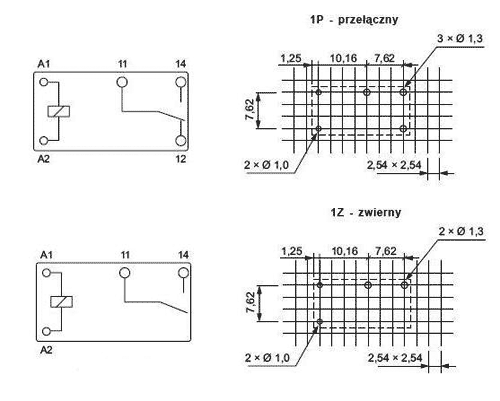

Leads  VIEW
Gross weight 3.84 g

Availability: On stock
