Relays PCB - Relay electromagnetic SPDT Ucoil 24VDC 16A/250VAC 16A/24VDC

Prod code: 15494
HF115F/024-1Z3A PDF

HF115F/024-1Z3A
Price:  2.39 €
VAT:  0.57 €
Final price with tax:  2.96 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer HONGFA RELAY
Relay type electromagnetic
Contacts configuration SPDT
Rated coil voltage 24V DC
AC contacts rating 16 A / 250 VAC
DC contacts rating 16 A / 24 VDC
Contact current max. 16A
Switched voltage max 300V DC, max 440V AC
Relay variant miniature
Mounting PCB
Coil resistance 1.44kÙ
Coil voltage min. 16.8V DC
Coil voltage max. 36V DC
Operate time 15ms
Body dimensions 29 x 12.7 x 15.7mm
Release time 8ms
Coil power consumption 400mW
Operating temperature 40...85°C
Relay series HF115F
Contact resistance 100mÙ
Terminal pitch 5mm

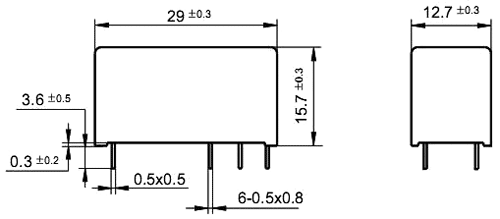

Dimensions  VIEW

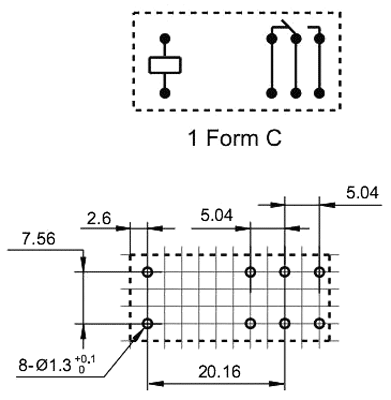

Schematic diagram  VIEW

Availability: With order
