Ηλεκτρονόμος πλακέτας - Relay electromagnetic, DPST-NO, Ucoil 24VDC, 5A/250VAC, 5A/30VDC

Κωδικός: 26007

G2R-2A-24DC PDF

G2R-2A-24DC

Τιμή χωρίς ΦΠΑ:  3.73 €
Αξία ΦΠΑ:  0.90 €
Τελική με ΦΠΑ:  4.63 €
Ποσότητα:
* Αποστολή σε 1 εργάσιμη ημέρα.
Specifications
Manufacturer OMRON
Relay type electromagnetic
Contacts configuration DPST-NO
Rated coil voltage 24V DC
AC contacts rating 5 A / 250 VAC
DC contacts rating 5 A / 30 VDC
Contact current max. 5A
Switched voltage max 380V AC, max 125V DC
Relay variant miniature
Mounting PCB
Coil resistance 1.1kΩ
Operate time 15ms
Body dimensions 29 x 13 x 25.5mm
Release time 5ms
Operating temperature 40...70°C
Relay series G2R
Contact resistance 50mΩ
Terminal pitch 5mm
Coil current 21.8mA
Enclosure description Standard seal
Leads for PCB
Associated items PODST-3

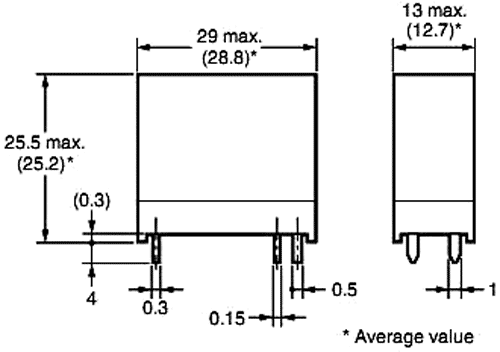

Dimensions  VIEW

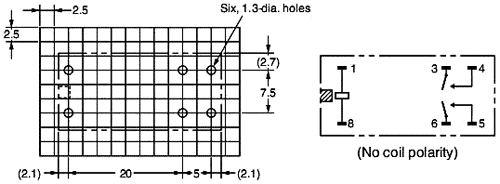

Output configuration  VIEW

Διαθεσιμότητα: Αμεσα
