power supplies - Pwr sup.unit switched-mode, modular, 75W, 24VDC, 3.2A, 90....264VAC

Prod code: 31533

TXM075-124 PDF

TXM075-124

Price:  44.34 €
VAT:  10.64 €
Final price with tax:  54.98 €
Amount:
Usually shipped within 2-3 business days.
Specifications
Manufacturer TRACO POWER
Pwr sup. unit type switched-mode
Kind of power supply modular
Power 75W
Output voltage 24V DC, 22.8...26.4V DC
Output current 3.2A
Supply voltage 90...264V AC, 127...370V DC
Weight 380g
Electrical connection terminal block
Protection overload, voltage growth, short-circuit
Mounting for building in
Number of outputs 1
Operating temperature 25...70°C
Body dimensions 129 x 99 x 38mm
Efficiency 88%
Series TXM

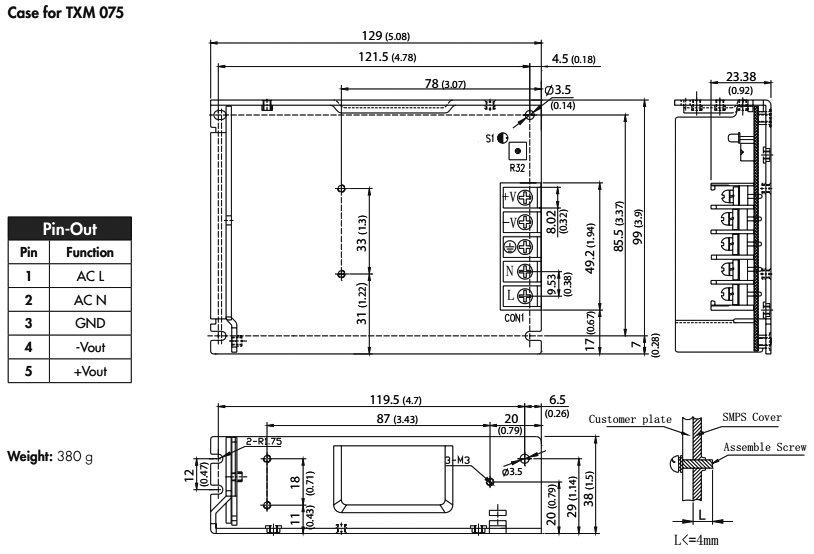

Dimensions  VIEW

Power supply/converter features:
  • no load power consumption <0,5W
  • rated parameters obtained at full load
Availability: With order
